250 Watt 3500k LM301H IP65 + 660nm + UV +IR LED Fusion Board Light Pre-Assembled Kit

250 Watt 3500k LM301H IP65 + 660nm + UV +IR LED Fusion Board Light Pre-Assembled Kit

Complete Kit Pre Assembeled Kit
250 Watt FB288 X2 LM301H 3500k + 660nm + UV +IR LED Light IP65

Sold out
$225.00
$225.00 - $225.00
$225.00
$158.00
$158.00 - $158.00
$158.00
SKU FB288X2-3500K-IP65

Product Description :

Product Name 250W Fusion Board
Spectrum 3500K, 660nm, UV, IR LEDs
Substrate Material Aluminum PCB
Thickness 1.6mm
Smallest aperture 0.003"
Surface treatment HASL
Modle PCB Board
Driver MW HLG-240H-48AB
LED QTY& Type 496pcs SAMSUNG LM301h +64pcs Epistar 660nm+8pcs UV+8pcs IR
Current: 500mA-2700mA
Power 250W
Lumens 200 Lm/W (50,000 lm)
Voltage 48V
Size 24.88" X 7.68"
Conductivity 1.0/W conductivity
Coverage Area 4' x 4' Veg & 3' x 3' Flower
Weight 13.3 lbs
Mounting Height Veg: 24" & Flower: 12-18"
Warranty 1-Year Warranty

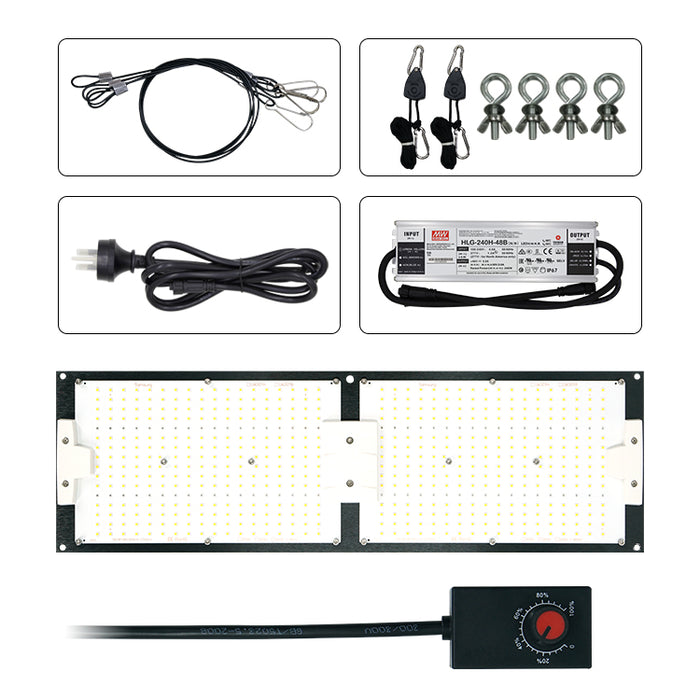

What included in a full set (FB288-LM301H V3)
FB288 Board(16S18P), 2pcs;

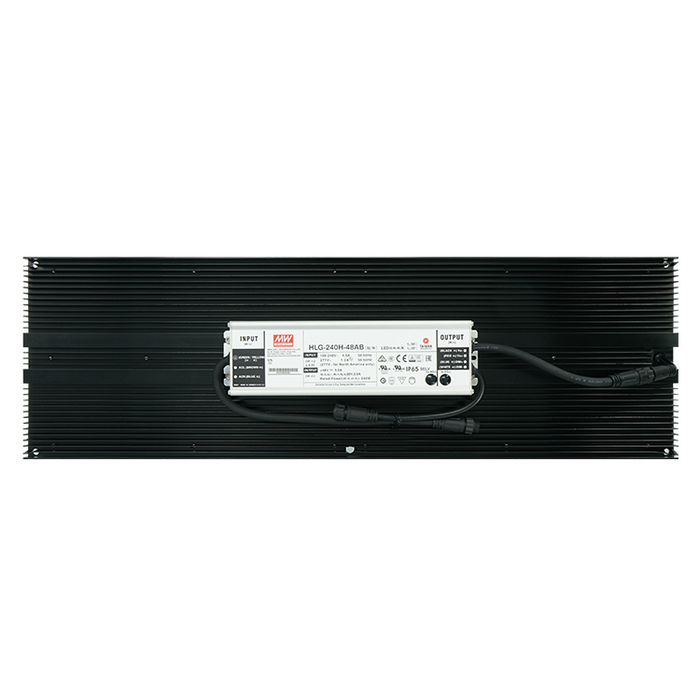

Heatsink: 326*195*10mm x 2 (two heatsinks)
Driver: MW HLG-240H-48AB
Waterproof Connector;
Solderless Potentiometer;
Plug wire+Wago blocks+Hanging Rope+Screws

Everything you need to get started, just plug and grow.

Recommended for:

  • Grow tents
  • Grow rooms
  • Large indoor grows
  • Vegetative growth and/or flowering
  • Full-cycle growing from seedling to flower
  • Soil, hydroponic, aeroponic, or aquaponic systems
